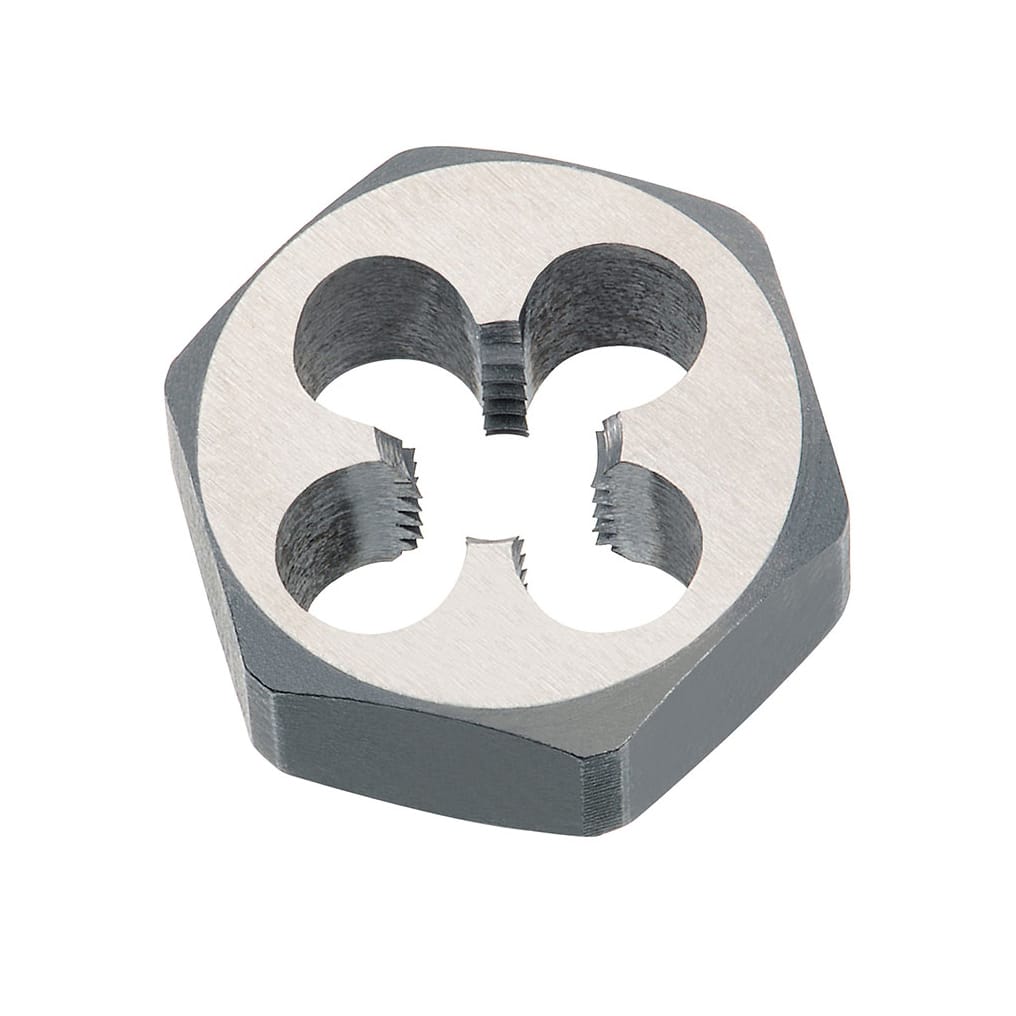

HSS Tol.6g Hexagon Die Nuts M DIN 382
Volkel Hexagon Die Nuts M

For cleaning and repairing damaged threads and for general use in awkward places.

Nominal Diameter

mm

Width across flats

mm

Art.-No.
M 3 x 0.5 19 x 5 27126
M 3.5 x 0.6 19 x 5 27128
M 4 x 0.7 19 x 5 27130
M 5 x 0.8 19 x 7 27134
M 6 x 1.0 19 x 7 27138
M 7 x 1.0 22 x 9 27140
M 8 x 1.25 22 x 9 27142
M 9 x 1.25 22 x 9 27144
M 10 x 1.5 27 x 11 27146
M 11 x 1.5 27 x 11 27148
M 12 x 1.75 36 x 14 27150
M 14 x 2.0 36 x 14 27154
M 16 x 2.0 41 x 18 27158
M 18 x 2.5 41 x 18 27162
M 20 x 2.5 41 x 18 27166
M 22 x 2.5 50 x 22 27170
M 24 x 3.0 50 x 22 27174
M 27 x 3.0 60 x 25 27176
M 30 x 3.5 60 x 25 27178
M 33 x 3.5 60 x 25 27180
M 36 x 4.0 60 x 25 27182
M 39 x 4.0 70 x 30 27184
M 42 x 4.5 70 x 30 27186
M 45 x 4.5 85 x 36 27188
M 48 x 5.0 85 x 36 27190
M 52 x 5.0 85 x 36 27192
M 56 x 5.5 100 x 36 27194
M 60 x 5.5 100 x 36 27196
M 64 x 6.0 100 x 36 27198
M 68 x 6.0 115 x 36 27199

Product attributes
