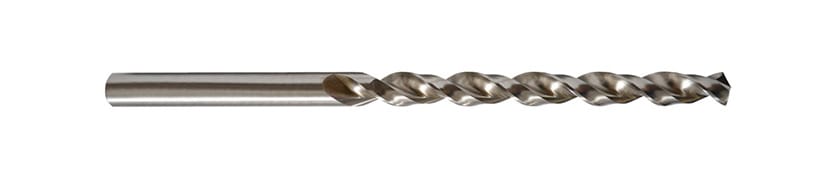

SOMTA UDL Drills - Long Series (0)
d

mm

l 2 l 1
1 33 56
1.1 37 60
1.2 41 65
1.3 41 65
1.4 41 70
1.5 45 70
1.6 50 76
1.7 50 76
1.8 53 80
1.9 53 80
2 56 85
2.1 56 85
2.2 59 90
2.3 59 90
2.4 62 95
2.5 62 95
2.6 66 100
2.7 66 100
2.8 66 100
2.9 66 100
3 66 100
3.1 69 106
3.2 69 106
3.3 69 106
3.4 73 112
3.5 73 112
3.6 73 112
3.7 73 112
3.8 78 119
3.9 78 119
4 78 119
4.1 78 119
4.2 78 119
4.3 82 126
4.4 82 126
4.5 82 126
4.6 82 126
4.7 82 126
4.8 87 132
4.9 87 132
5 87 132
5.1 87 132
5.2 87 132
5.3 87 132
5.4 91 139
5.5 91 139
5.6 91 139
5.7 91 139
5.8 91 139
5.9 91 139
6 91 139
6.1 97 148
6.2 97 148
6.3 97 148
6.4 97 148
6.5 97 148
6.6 97 148
6.7 97 148
6.8 102 156
6.9 102 156
7 102 156
7.1 102 156
7.2 102 156
7.3 102 156
7.4 102 156
7.5 102 156
7.6 109 165
7.7 109 165
7.8 109 165
7.9 109 165
8 109 165
8.1 109 165
8.2 109 165
8.3 109 165
8.4 109 165
8.5 109 165
8.6 115 175
8.7 115 175
8.8 115 175
8.9 115 175
9 115 175
9.1 115 175
9.2 115 175
9.3 115 175
9.4 115 175
9.5 115 175
9.6 121 184
9.7 121 184
9.8 121 184
9.9 121 184
10 121 184
10.1 121 184
10.2 121 184
10.3 121 184
10.4 121 184
10.5 121 184
10.6 121 184
10.7 128 195
10.8 128 195
10.9 128 195
11 128 195
11.1 128 195
11.2 128 195
11.3 128 195
11.4 128 195
11.5 128 195
11.6 128 195
11.7 128 195
11.8 128 195
11.9 134 205
12 134 205
12.1 134 205
12.2 134 205
12.3 134 205
12.4 134 205
12.5 134 205
12.6 134 205
12.7 134 205
12.8 134 205
12.9 134 205
13 134 205
13.1 134 205
13.2 134 205
13.3 140 214
13.4 140 214
13.5 140 214
13.6 140 214
13.7 140 214
13.8 140 214
13.9 140 214
14 140 214
