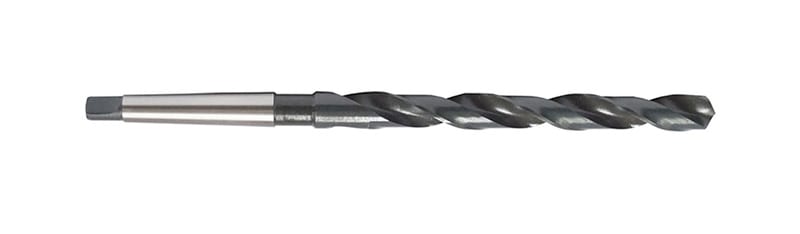

SOMTA HSS MTS Taper Shank Extra Length Drills - x0.5
| d | l 1 | l 2 | Morse Taper |
| 12.5 | 395 | 260 | 1 |
| 13.5 | 325 | 220 | 1 |
| 13.5 | 410 | 275 | 1 |
| 14.5 | 340 | 220 | 2 |
| 14.5 | 400 | 250 | 2 |
| 14.5 | 425 | 275 | 2 |
| 15.5 | 355 | 230 | 2 |
| 15.5 | 400 | 250 | 2 |
| 15.5 | 445 | 295 | 2 |
| 16.5 | 355 | 230 | 2 |
| 16.5 | 445 | 295 | 2 |
| 17.5 | 370 | 245 | 2 |
| 17.5 | 465 | 310 | 2 |
| 18.5 | 370 | 245 | 2 |
| 18.5 | 465 | 310 | 2 |
| 19.5 | 315 | 200 | 2 |
| 19.5 | 400 | 300 | 2 |
| 20.5 | 315 | 200 | 2 |
| 20.5 | 490 | 325 | 2 |
| 21.5 | 400 | 260 | 2 |
| 21.5 | 515 | 330 | 2 |
| 22.5 | 405 | 270 | 2 |
| 22.5 | 515 | 345 | 2 |
| 23.5 | 425 | 270 | 3 |
| 23.5 | 535 | 345 | 3 |
| 24.5 | 440 | 290 | 3 |
| 24.5 | 555 | 365 | 3 |
| 26.5 | 440 | 290 | 3 |
| 27.5 | 460 | 305 | 3 |
| 28.5 | 450 | 300 | 3 |
| 29.5 | 450 | 300 | 3 |
| 31.5 | 530 | 375 | 3 |
SOMTA HSS MTS Taper Shank Extra Length Drills x0.5mm
- Premium raw material high speed steel drills for Steels
- Good quality, productivity drills for general precision drilling
- Improved drill point design and geometry for increased rigidity
- DIN 345 standard with 118° drilling point angle
- Morse Taper MTS
- HSS Material with Steam Temper
- Extra length for Deep Hole drilling
The SOMTA range consists of over 7 000 standard items and have a cutting tool available for almost every application
SOMTA constantly innovate and designed drills with improved point and flute geometries for enhanced penetration and chip removal
SOMTA Large diameter drill
SOMTA Large size drill
SOMTA Extra large drill
SOMTA drills for large hole
SOMTA Big diameter drill
SOMTA Extra length drill
SOMTA Extra Long drill
SOMTA Deep Hole drill
Product attributes
HSS
