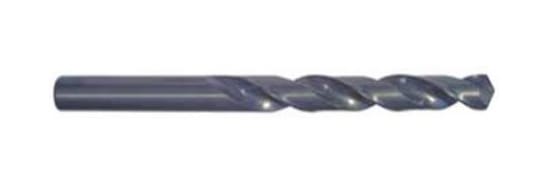

SOMTA NDX Jobber Drills (M) (INCH)

d

mm

l 2 l 1
1 12 34
1.1 14 36
1.2 16 38
1.3 16 38
1.4 18 40
1.5 18 40
1.587 20 43
1.6 20 43
1.7 20 43
1.8 22 46
1.9 22 46
1.984 24 49
2 24 49
2.1 24 49
2.2 27 53
2.3 27 53
2.381 30 57
2.4 30 57
2.5 30 57
2.6 30 57
2.7 33 61
2.778 33 61
2.8 33 61
2.9 33 61
3 33 61
3.1 36 65
3.175 36 65
3.2 36 65
3.3 36 65
3.4 39 70
3.5 39 70
3.572 39 70
3.6 39 70
3.7 39 70
3.8 43 75
3.9 43 75
3.969 43 75
4 43 75
4.1 43 75
4.2 43 75
4.3 47 80
4.366 47 80
4.4 47 80
4.5 47 80
4.6 47 80
4.7 47 80
4.762 52 86
4.8 52 86
4.9 52 86
5 52 86
5.1 52 86
5.159 52 86
5.2 52 86
5.3 52 86
5.4 57 93
5.5 57 93
5.556 57 93
5.6 57 93
5.7 57 93
5.8 57 93
5.9 57 93
5.953 57 93
6 57 93
6.1 63 101
6.2 63 101
6.3 63 101
6.35 63 101
6.4 63 101
6.5 63 101
6.6 63 101
6.7 63 101
6.747 69 109
6.8 69 109
6.9 69 109
7 69 109
7.1 69 109
7.144 69 109
7.2 69 109
7.3 69 109
7.4 69 109
7.5 69 109
7.541 75 117
7.6 75 117
7.7 75 117
7.8 75 117
7.9 75 117
7.937 75 117
8 75 117
8.1 75 117
8.2 75 117
8.3 75 117
8.334 75 117
8.4 75 117
8.5 75 117
8.6 81 125
8.7 81 125
8.731 81 125
8.8 81 125
8.9 81 125
9 81 125
9.1 81 125
9.128 81 125
9.2 81 125
9.3 81 125
9.4 81 125
9.5 81 125
9.525 87 133
9.6 87 133
9.7 87 133
9.8 87 133
9.9 87 133
9.922 87 133
10.1 87 133
10.2 87 133
10.3 87 133
10.319 87 133
10.4 87 133
10.5 87 133
10.6 87 133
10.7 94 142
10.716 94 142
10.8 94 142
10.9 94 142
11 94 142
11.1 94 142
11.112 94 142
11.2 94 142
11.3 94 142
11.4 94 142
11.5 94 142
11.509 94 142
11.6 94 142
11.7 94 142
11.8 94 142
11.9 101 151
11.906 101 151
12 101 151
12.1 101 151
12.2 101 151
12.3 101 151
12.303 101 151
12.4 101 151
12.5 101 151
12.6 101 151
12.7 101 151
12.8 101 151
12.9 101 151
13 101 151
13.1 101 151
13.5 108 160
13.7 108 160
14 108 160
14.5 114 169
15 114 169
15.5 120 178
16 120 178
16.5 125 184
17 125 184
17.5 130 191
18 130 191
18.5 135 198
19 135 198
19.5 140 205
20 140 205



d

Inch

l 2 l 1
1/16 20 43
5/64 24 49
3/32 30 57
7/64 33 61
1/8 36 65
9/64 39 70
5/32 43 75
11/64 47 80
3/16 52 86
13/64 52 86
7/32 57 93
15/64 57 93
1/4 63 101
17/64 69 109
9/32 69 109
19/64 75 117
5/16 75 117
21/64 75 117
11/32 81 125
23/64 81 125
3/8 87 133
35/64 87 133
13/32 87 133
27/64 94 142
7/16 94 142
29/64 94 142
15/32 101 151
31/64 101 151
1/2 101 151



Product attributes

HSS Cobalt

HSS Cobalt

130°

130°
